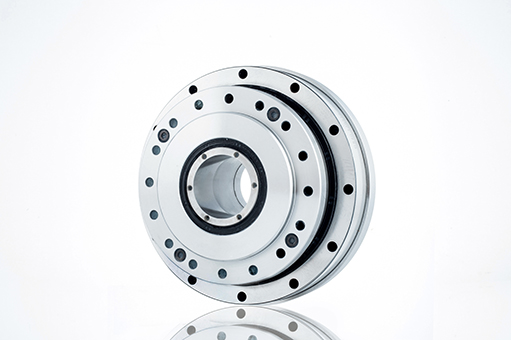

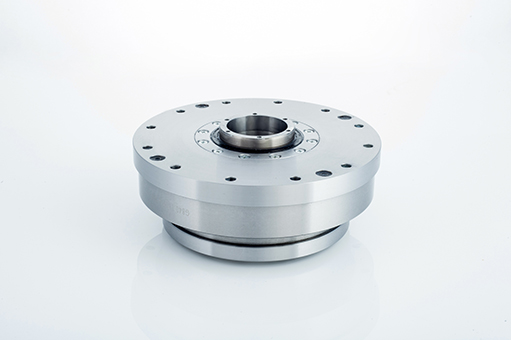

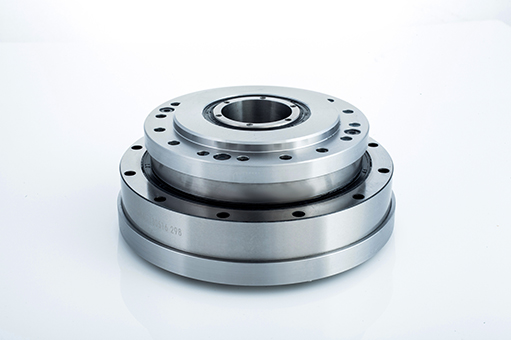

Strain Wave Gear LHS-CL-III series

The flexspline of LHS-III/LHS-CL-III (lightweight) series is the hollow flange standard tube-shaped structure, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

The overall reducer uses the design of enclosed structure, and built-in support bearing for convenient installation and free of maintenance. The wave generator uses the large caliber hollow design, and the hollow structure is to facilitate the customer crossing the spline, cable, etc.

Model

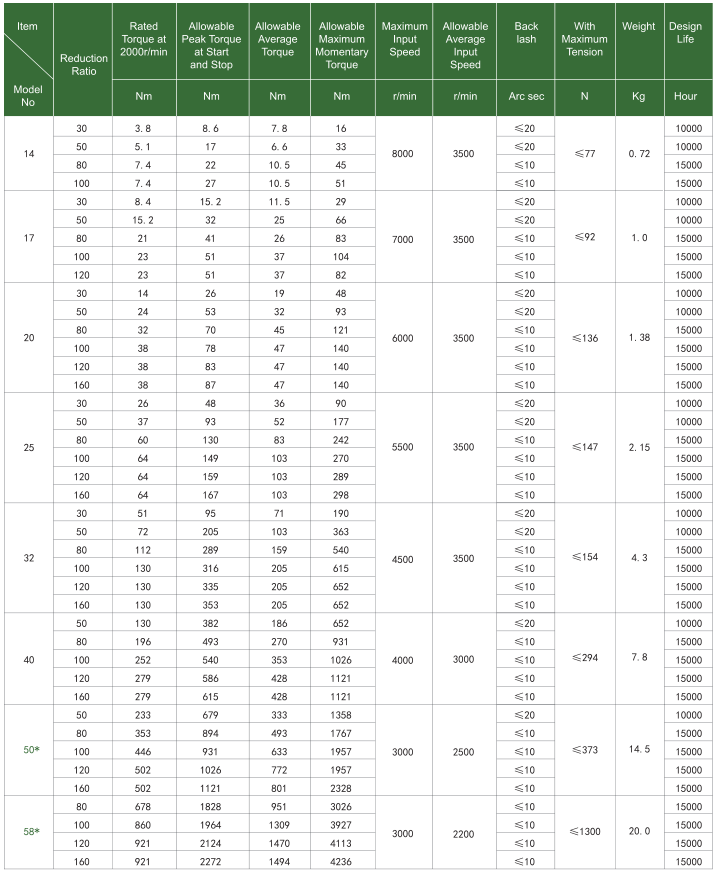

Specification
Application
Downloads

	1. Model: LHS series
	2. Model Nos: 14,17,20,25,32,40,45,50,58
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C,CL
	5. Specification Code: I,II,III,IV
