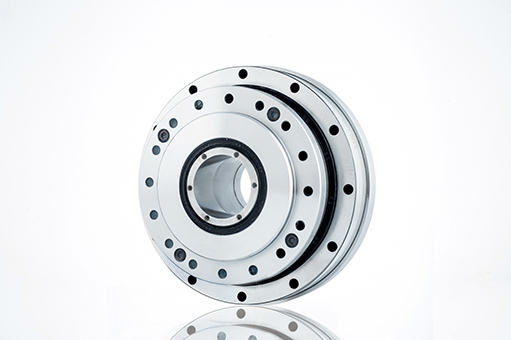

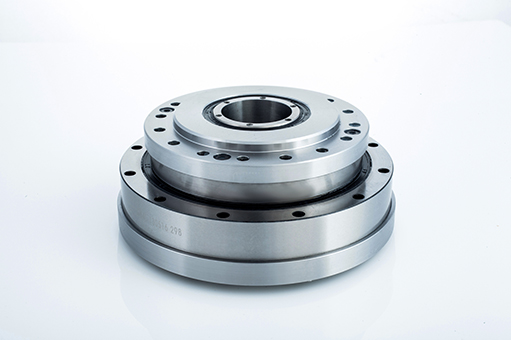

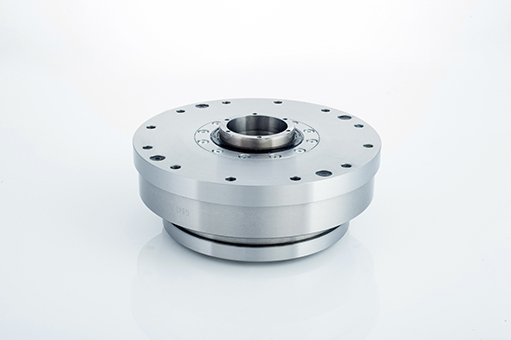

Strain Wave Gear LHS-III series

The flexspline of LHS-III/LHS-CL-III (lightweight) series is the hollow flange standard tube-shaped structure, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

This series adds the lightweight design, through the optimization of structure and materials, in the premise of maintaining the original parameters unchanged, the weight of reducer is reduced significantly, so that it can provide the faster speed and load after applying on the robot.

Model

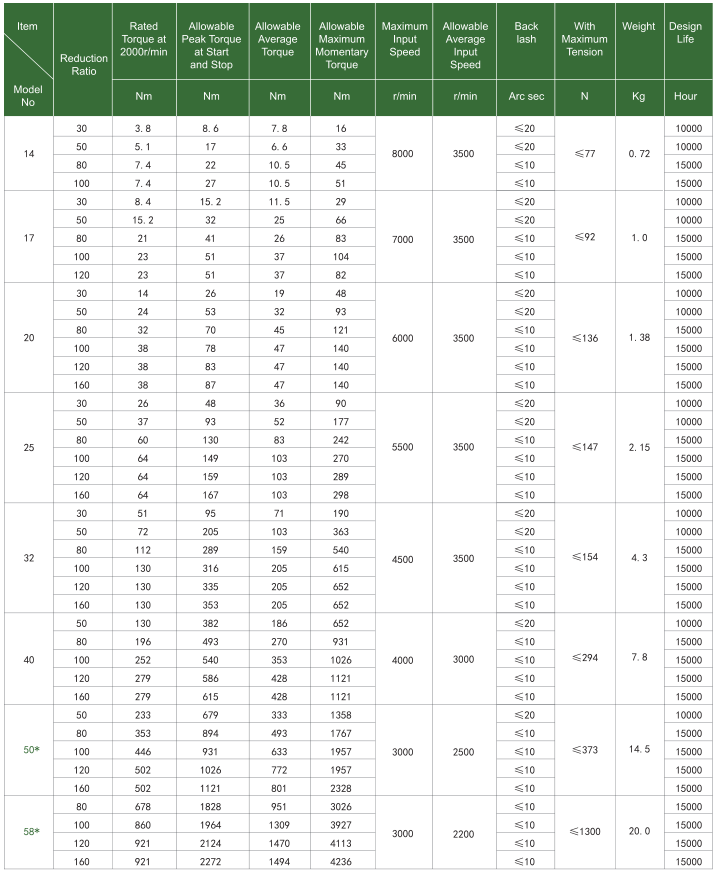

Specification
Application
Downloads

	1. Model: LHS series
	2. Model Nos: 14,17,20,25,32,40,45,50,58
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C,CL
	5. Specification Code: I,II,III,IV
