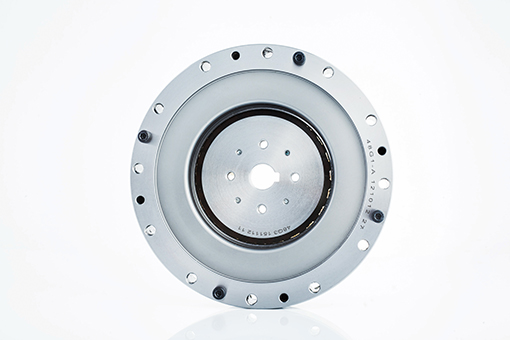

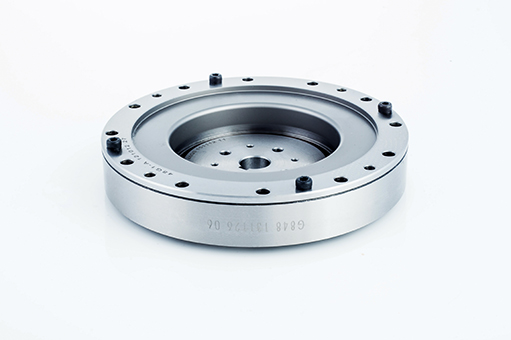

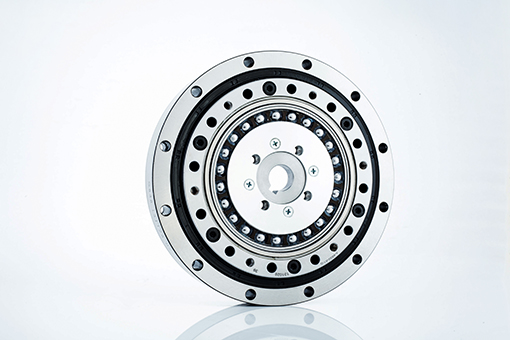

Strain Wave Gear LHD series

The flexspline of LHD-I series (overall unit) of is the ultrathin hollow flange structure, the design of overall unit has reached the ultrathin limit, compared with LHS/LHSG series, its axial length is shorten by about 35%, and it is built-in the ultra-high precise, high rigid cross roller bearing to bear the external load directly. This series is best for the application of flat structure.

Model

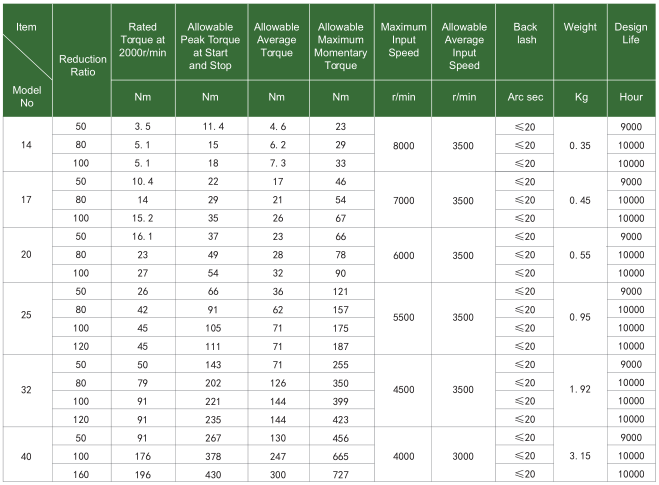

Specification
Application
Downloads

	1. Model: LHD series
	2. Model Nos: 14,17,20,25,32,40
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C
	5. Specification Code: I,III
