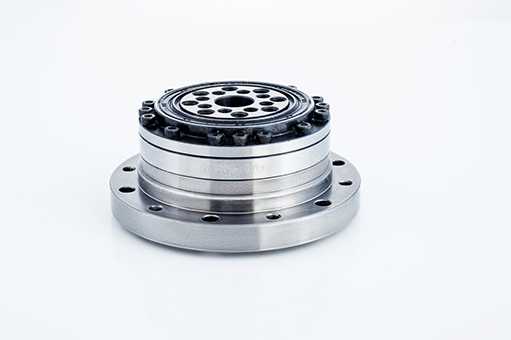

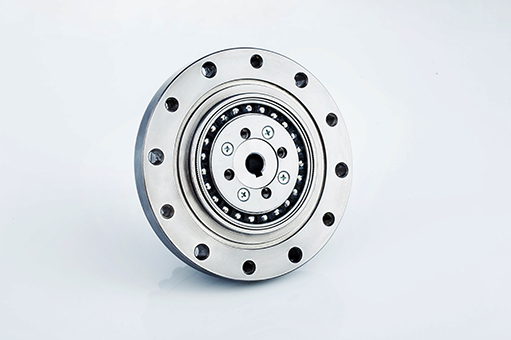

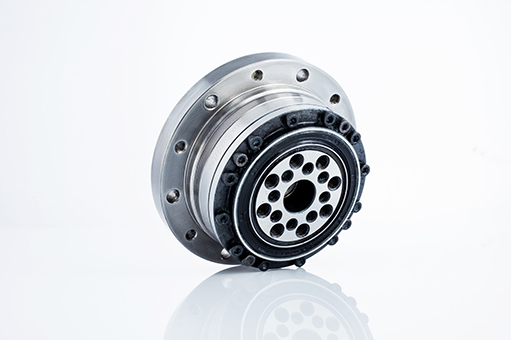

Strain Wave Gear LCS-I series

the flexspline of LCS-I series (overall unit) is the standard cup-shaped tube structure, the input spline is matched with the inner hole of wave generator directly and connected through the flat key, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

Model

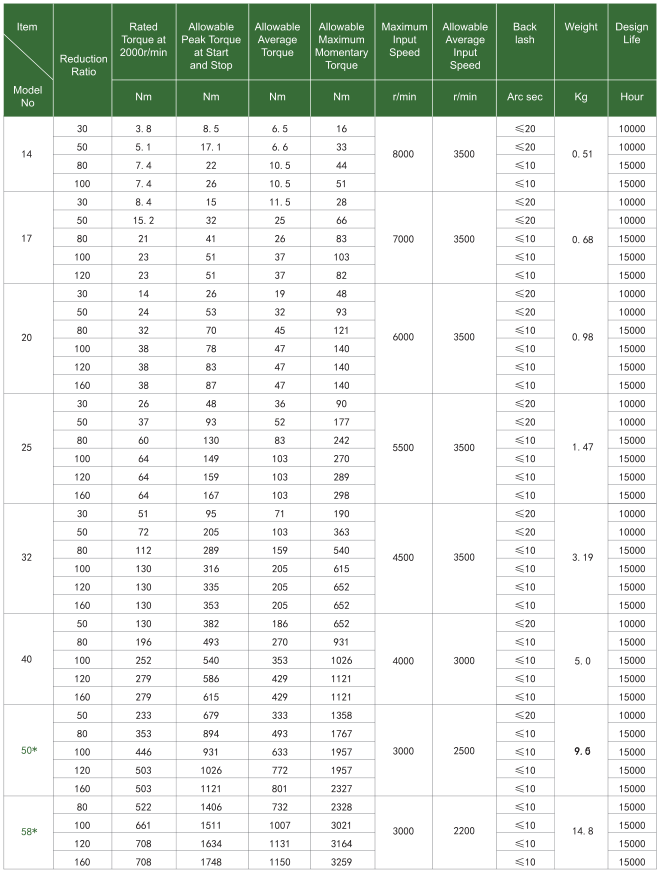

Specification
Application
Downloads

	1. Model: LCS series
	2. Model Nos: 11,14,17,20,25,32,40,45,50
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C
	5. Specification Code: I,II
