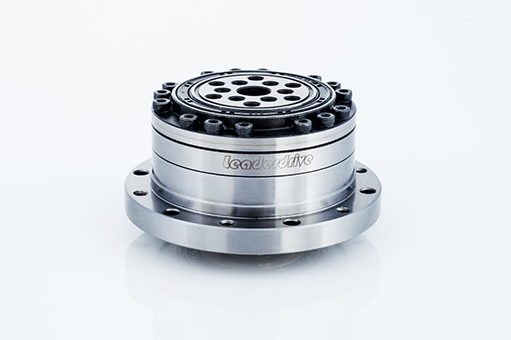

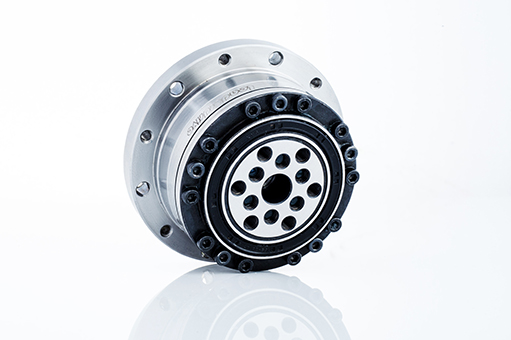

Strain Wave Gear LCSG-II series

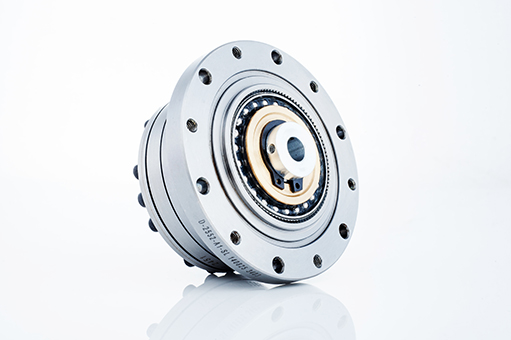

LCSG-II series (overall unit) is the high-torque model, and its torque bearing capacity is 30% increased than LHS series. Its flexspline is the standard cup-shaped tube structure, the input spline is connected with the inner hole of wave generator through the double slider coupling, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

Model

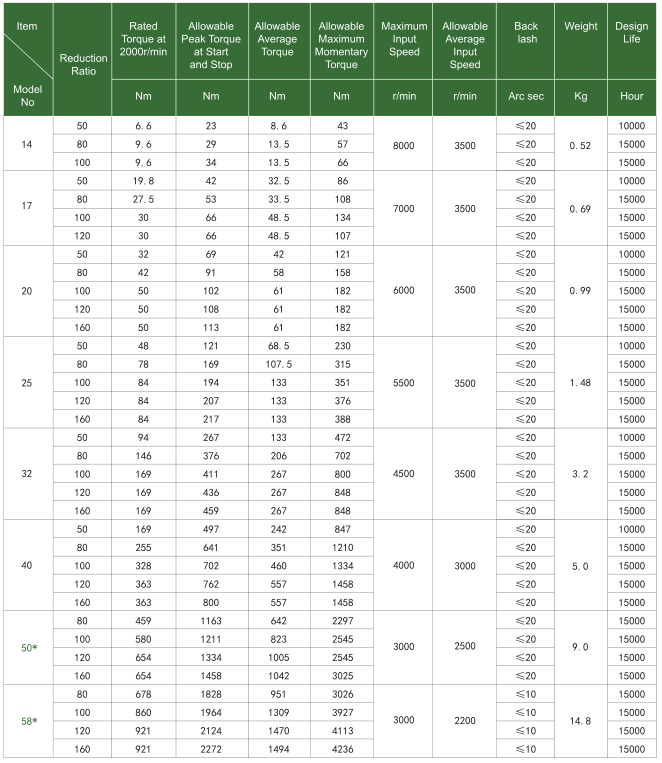

Specification
Application
Downloads

	1. Model: LCSG series
	2. Model Nos: 14,17,20,25,32,40,45,50
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C
	5. Specification Code: I,II
