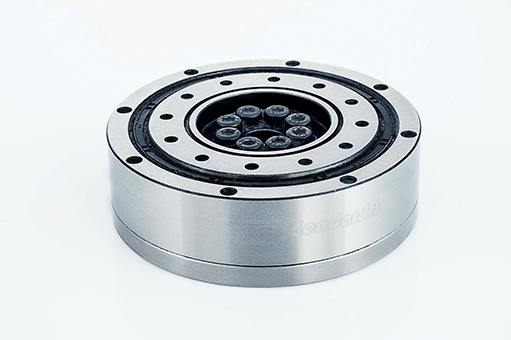

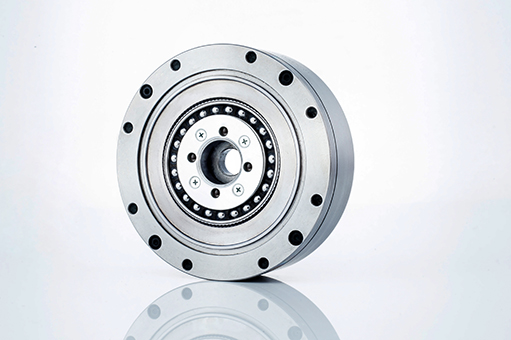

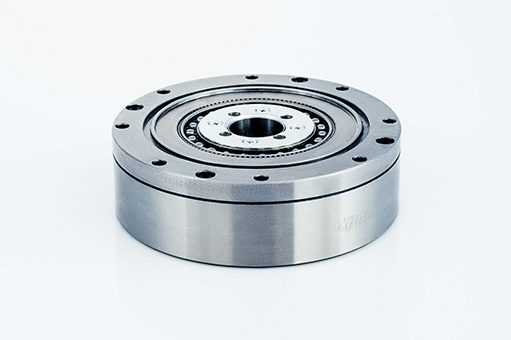

Strain Wave Gear LCD series

The flexspline of LCD series (overall unit) of is the thin-walled cup-shaped structure, and the design of overall unit uses the super flat (ultrathin) structure, small volume and light weight, and it is built-in ultra-high precise, high rigid cross roller bearing to bear the external load directly.

Model

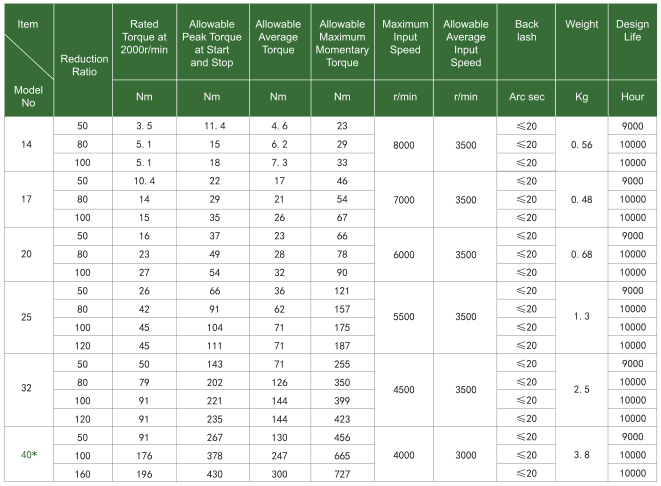

Specification
Application
Downloads

	1. Model: LCD series
	2. Model Nos: 14,17,20,25,32,40
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C
	5. Specification Code: I
