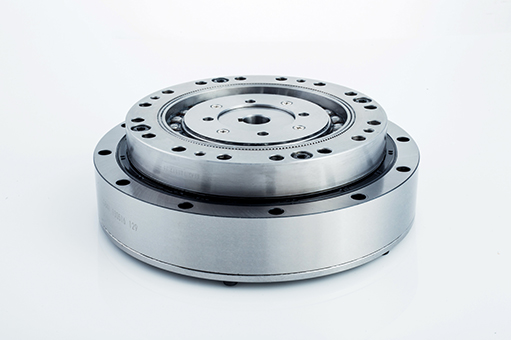

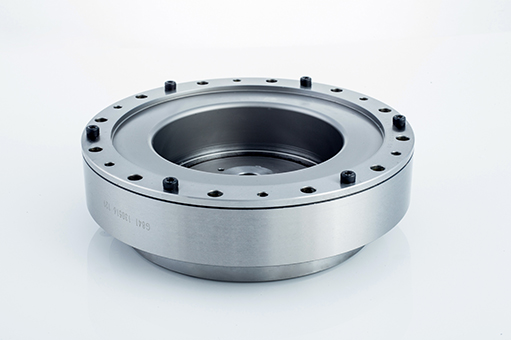

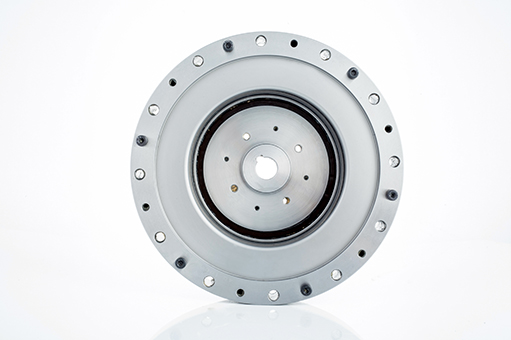

Strain Wave Gear LHSG-I series

LHSG-I series is the high-torque model, and its torque bearing capacity is 30% increased than LHS series. Its flexspline is the hollow flange standard tube-shaped structure, the structure of overall unit is compact, the input spline is matched with the inner hole of wave generator directly and connected through the flat key, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

Model

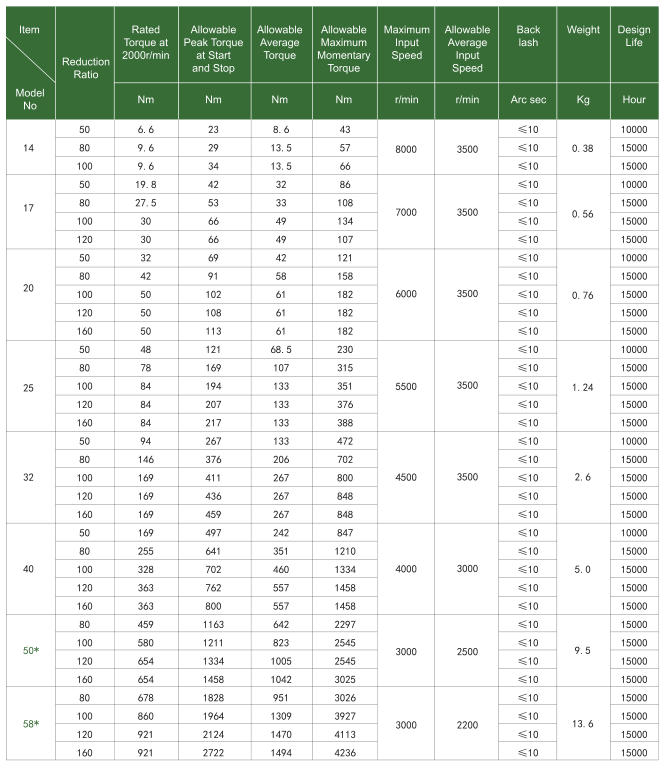

Specification
Application
Downloads

	1. Model: LHSG series
	2. Model Nos: 14,17,20,25,32,40,45,50,58
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C,CL
	5. Specification Code: I,II,III,IV
