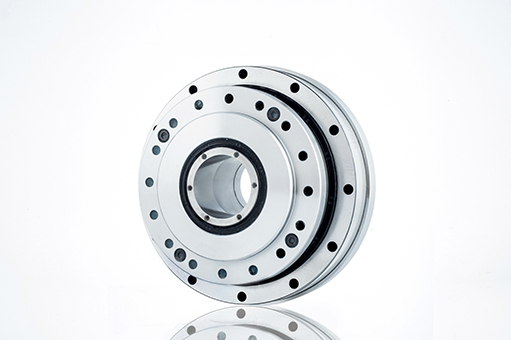

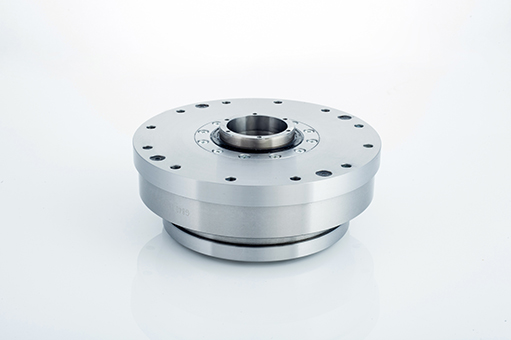

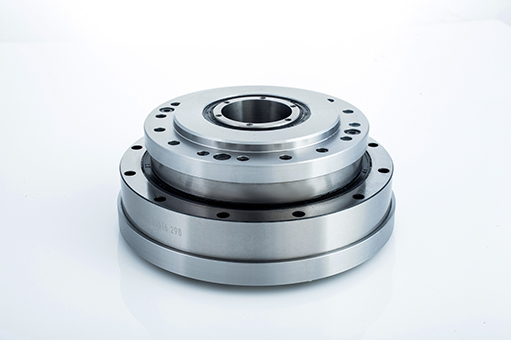

Strain Wave Gear LHSG-III series

LHSG-III/LHSG-CL-III (lightweight) series is the high-torque model, its torque bearing capacity is improved by above 30% than LHS series. Its flexspline is the hollow flange standard tube-shaped structure, and it is built-in the super high precise and rigid cross roller bearing to bear the external load directly.

Model

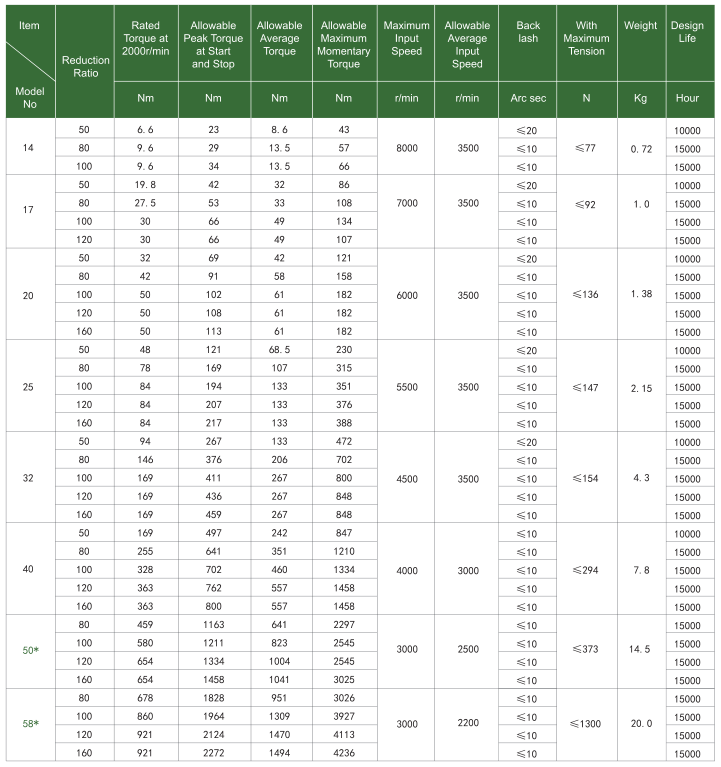

Specification
Application
Downloads

	1. Model: LHSG series
	2. Model Nos: 14,17,20,25,32,40,45,50,58
	3. Reduction Ratio: 50,80,100,120,160
	4. Structure Code: C,CL
	5. Specification Code: I,II,III,IV
